品名Name:WGS 500KG握爪模块 Gripper Module WGS 500
型号Model No:PO-MD102

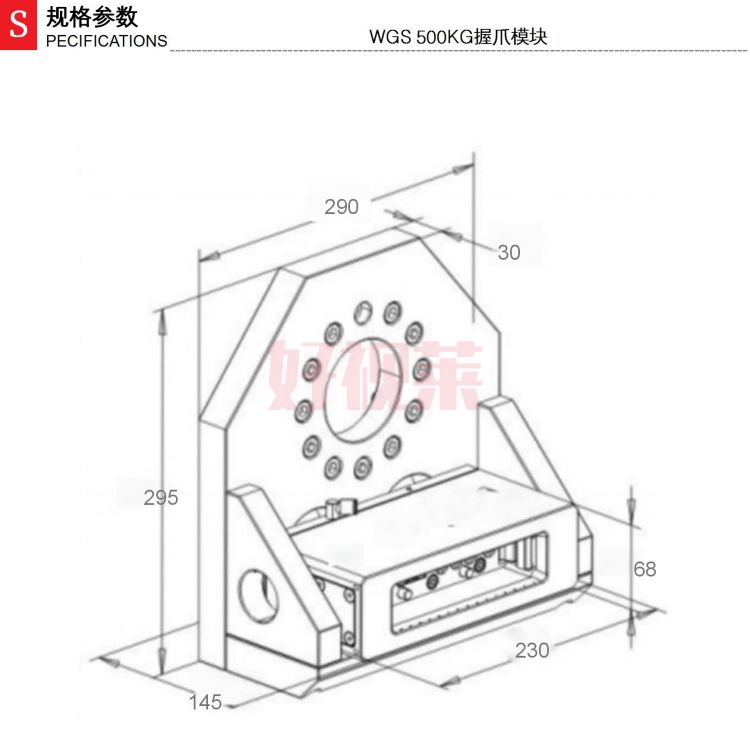

规格Size:290*145 *295mm
材料Materidl:铬钢Chrome steel
硬度Hardhess:46~52HRC
重复定位Repeatabilty:±0.025mm
使用压力Actuation Pressure:6±1Bar
负载load weight:500KGS(加压600KGS)(Increase pressure 600KGS)
开闭信号OpeningAnd dosing Signd:带传感器Wit sensor
气模块Pneumatc module:4通道 4Air lines
电模块Electric module:10MA-10pin
净重Net weight:33.8KG
